How to configure a static IP address on a PAX S300 pin pad terminal

  1. Make sure that the terminal is connected to a wired network via the red interface cable and that the terminal is powered on.

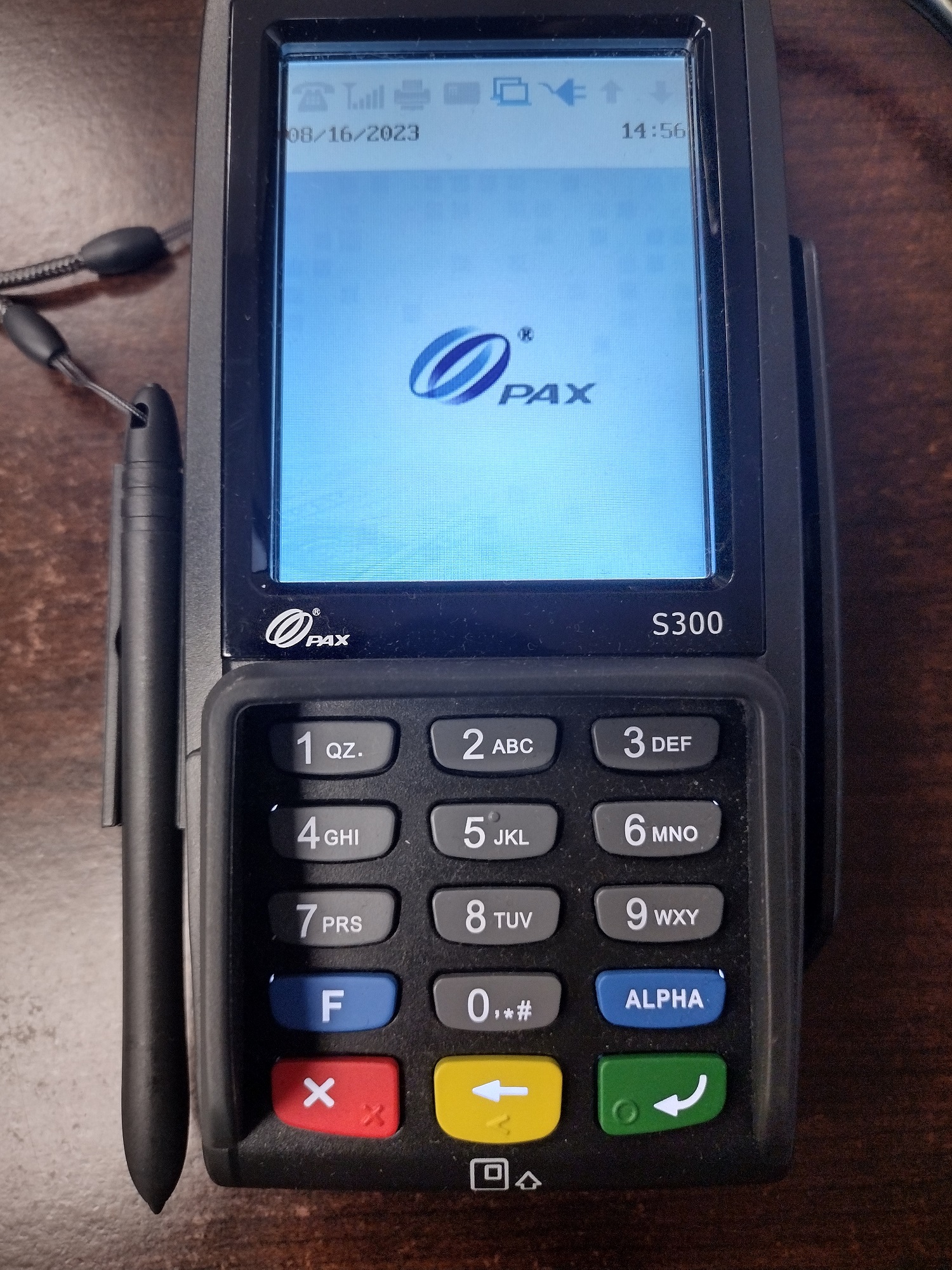

  2. From the idle screen, press both the blue function button and the 1 button at the same time.

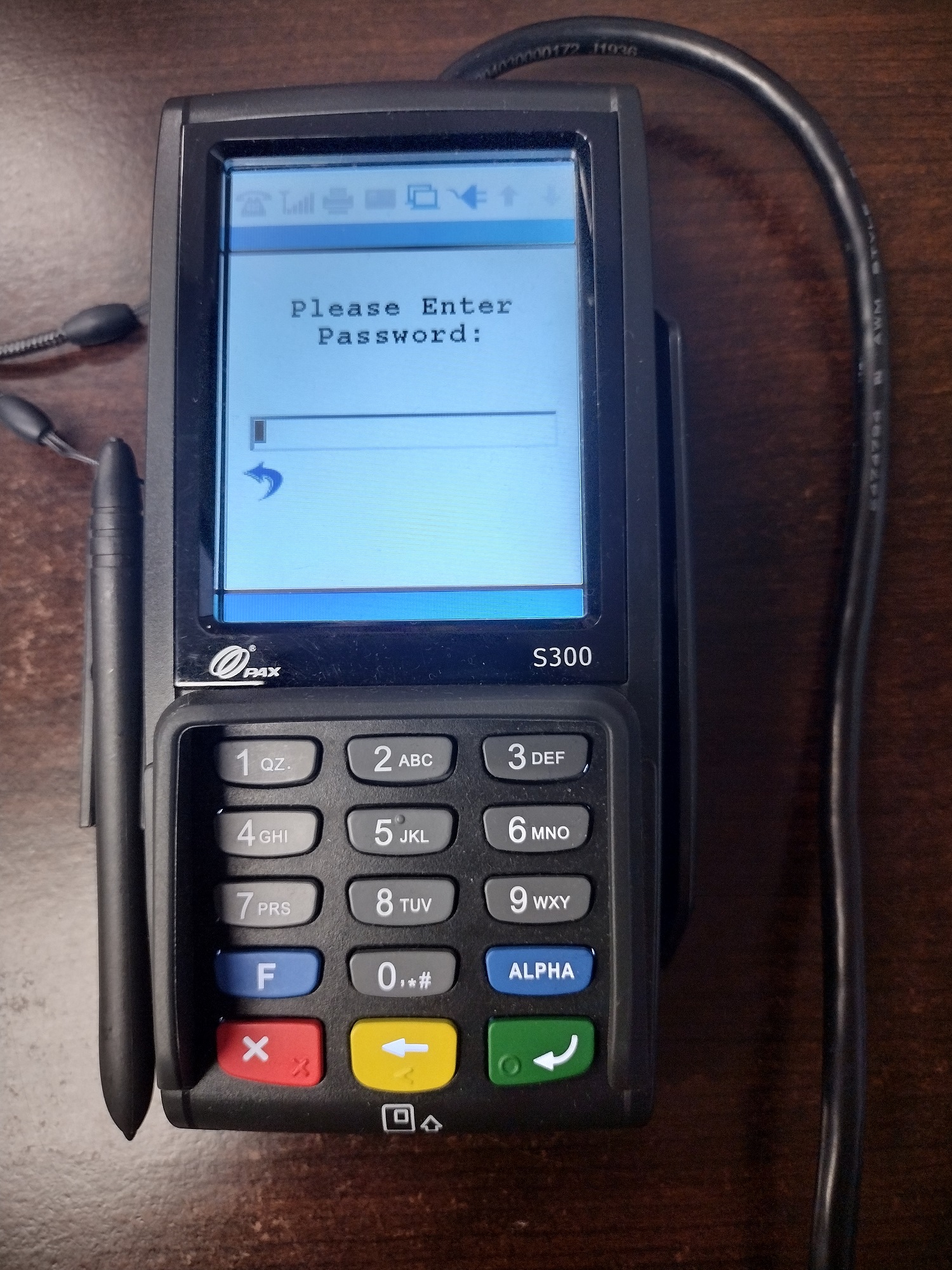

  1. You will be asked to enter the admin password which is the current date in the format of MMDDYYYY and then press the green enter button.

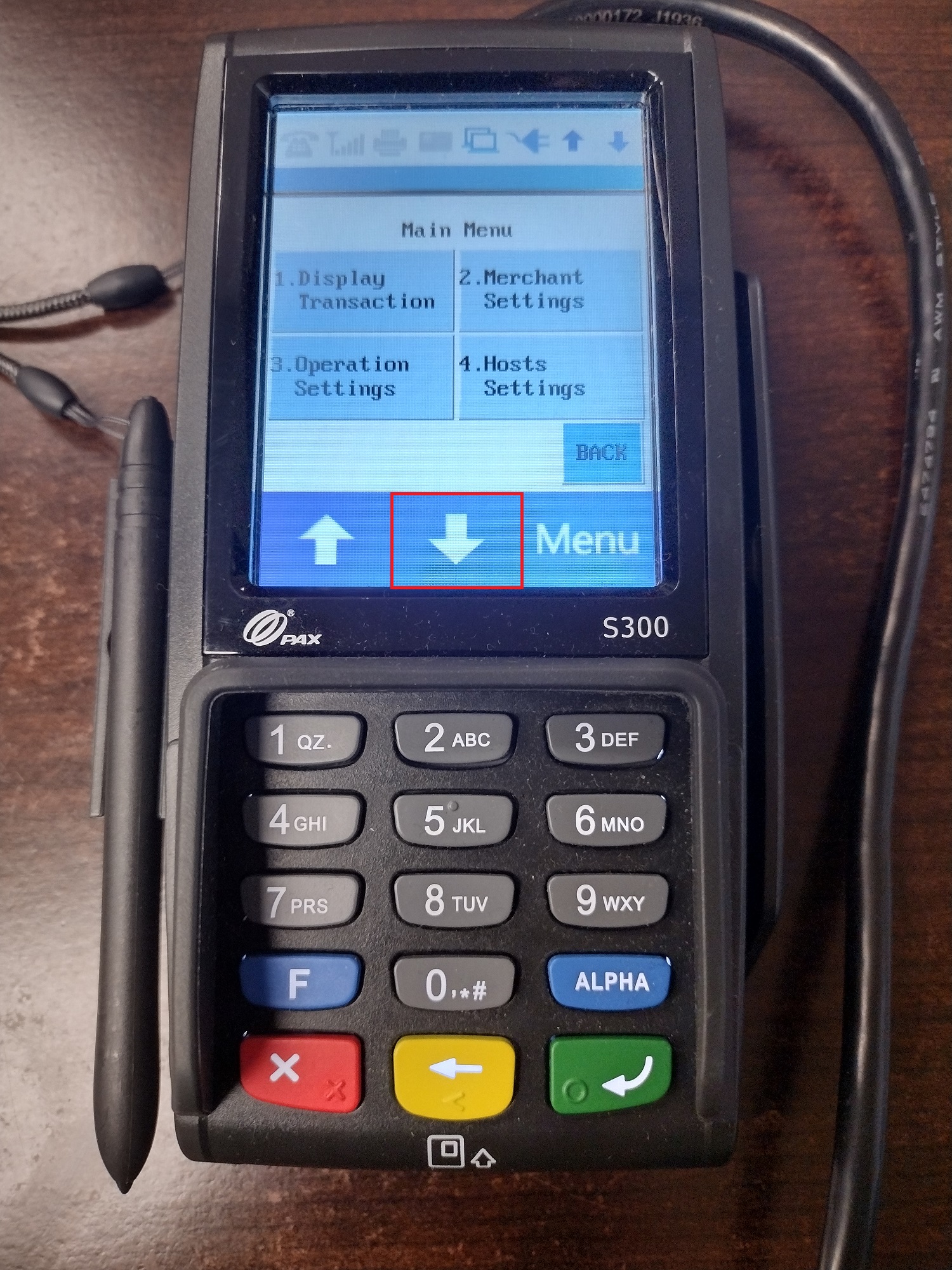

  1. From the main menu, tap the down arrow button once.

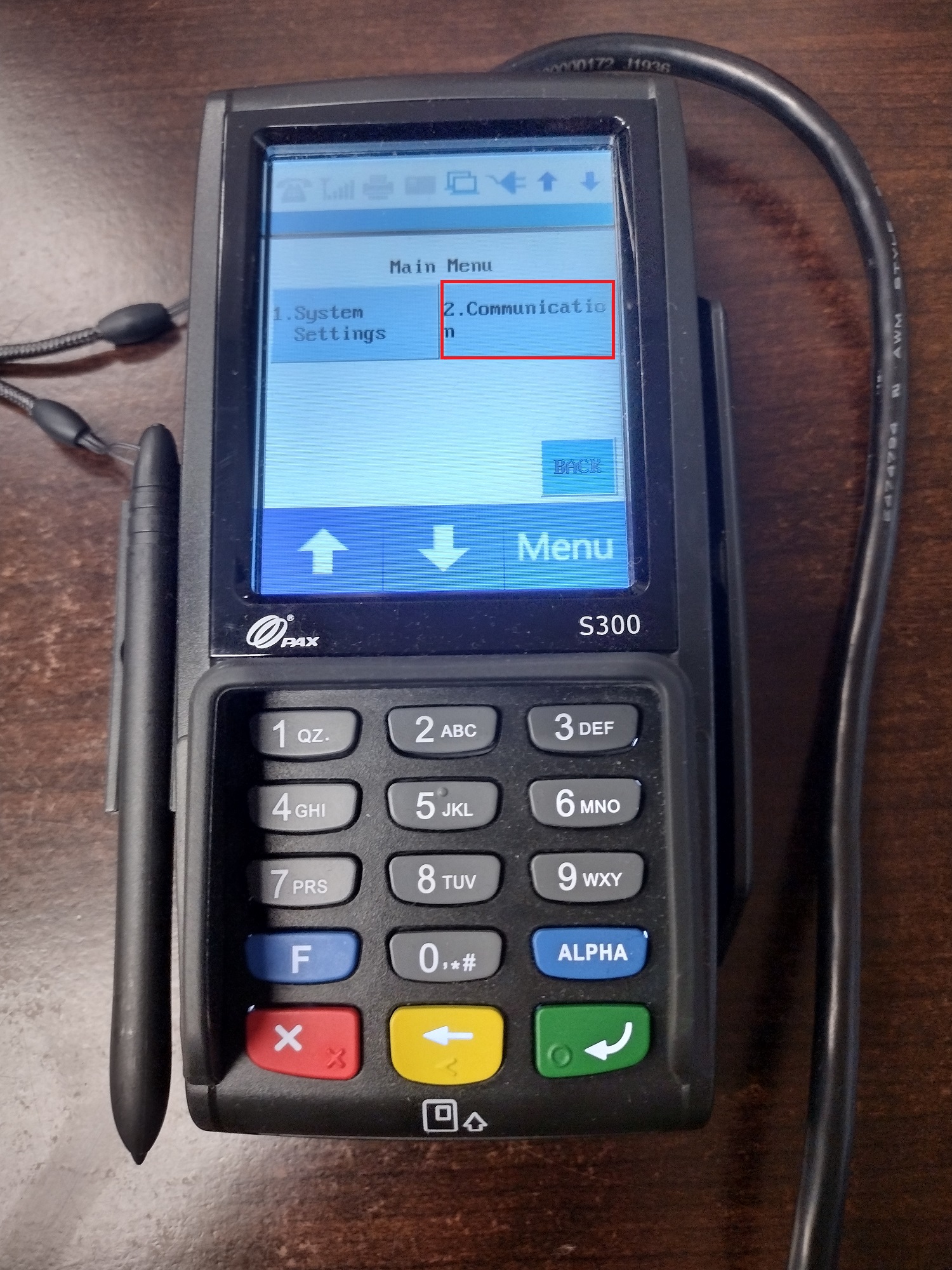

  1. Tap 2 for Communication.


  1. You will be asked to enter the admin password which is the current date in the format of MMDDYYYY and then press the green enter button.


  1. From the communications options menu, tap the down arrow button twice.

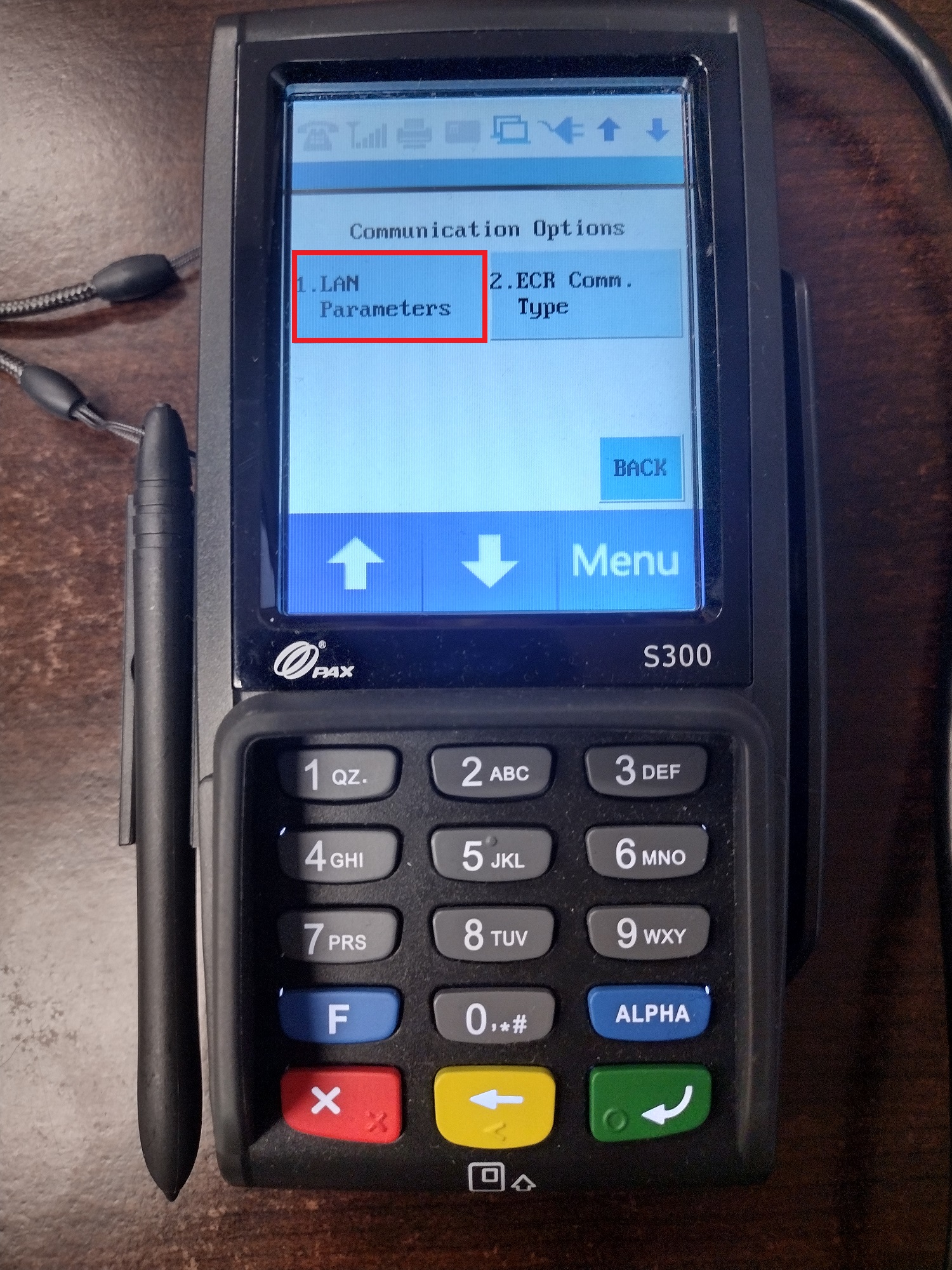

  1. Tap 1 for LAN Parameters.

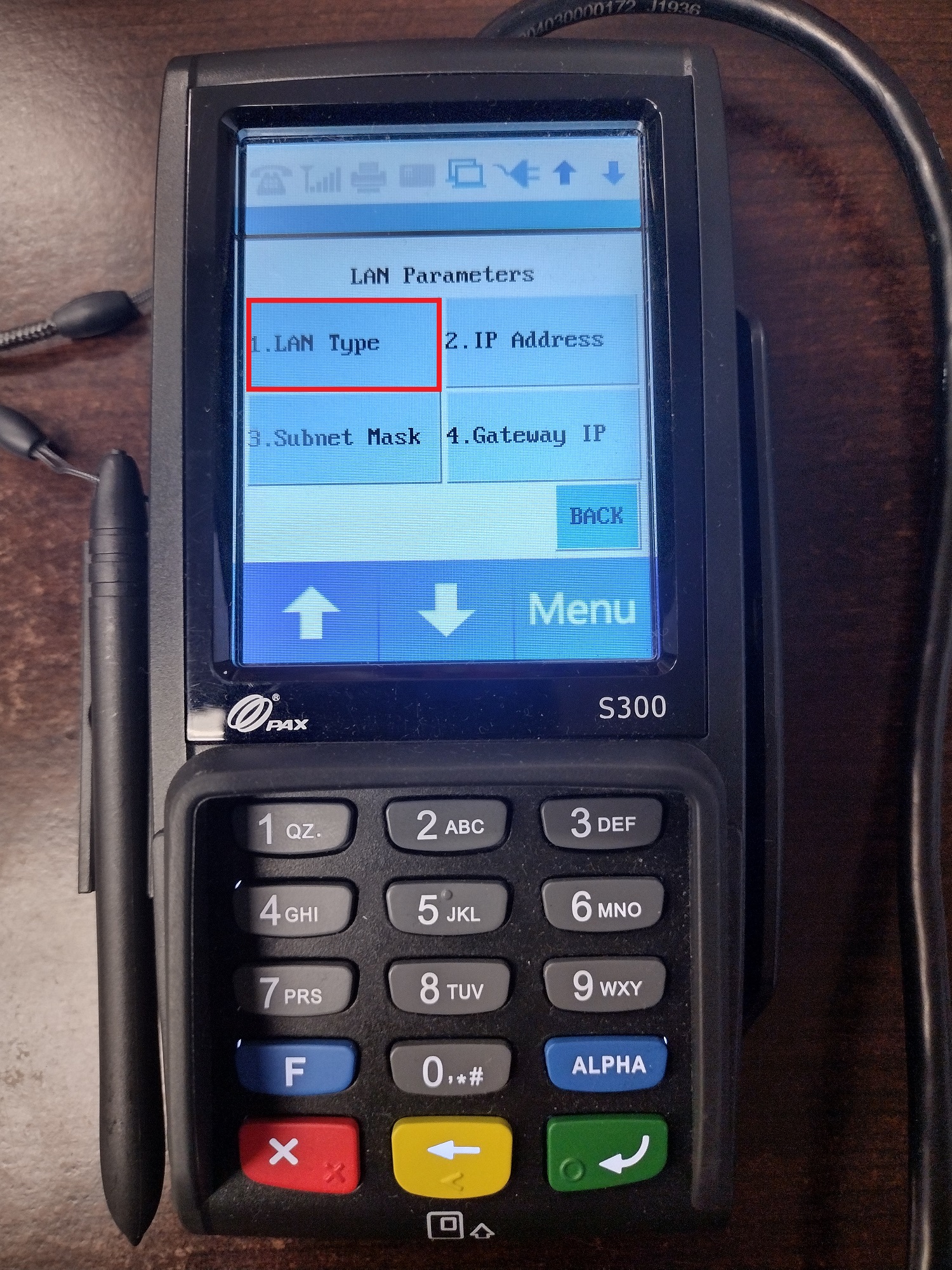

  1. From the LAN Parameters menu, tap 1 for LAN Type.

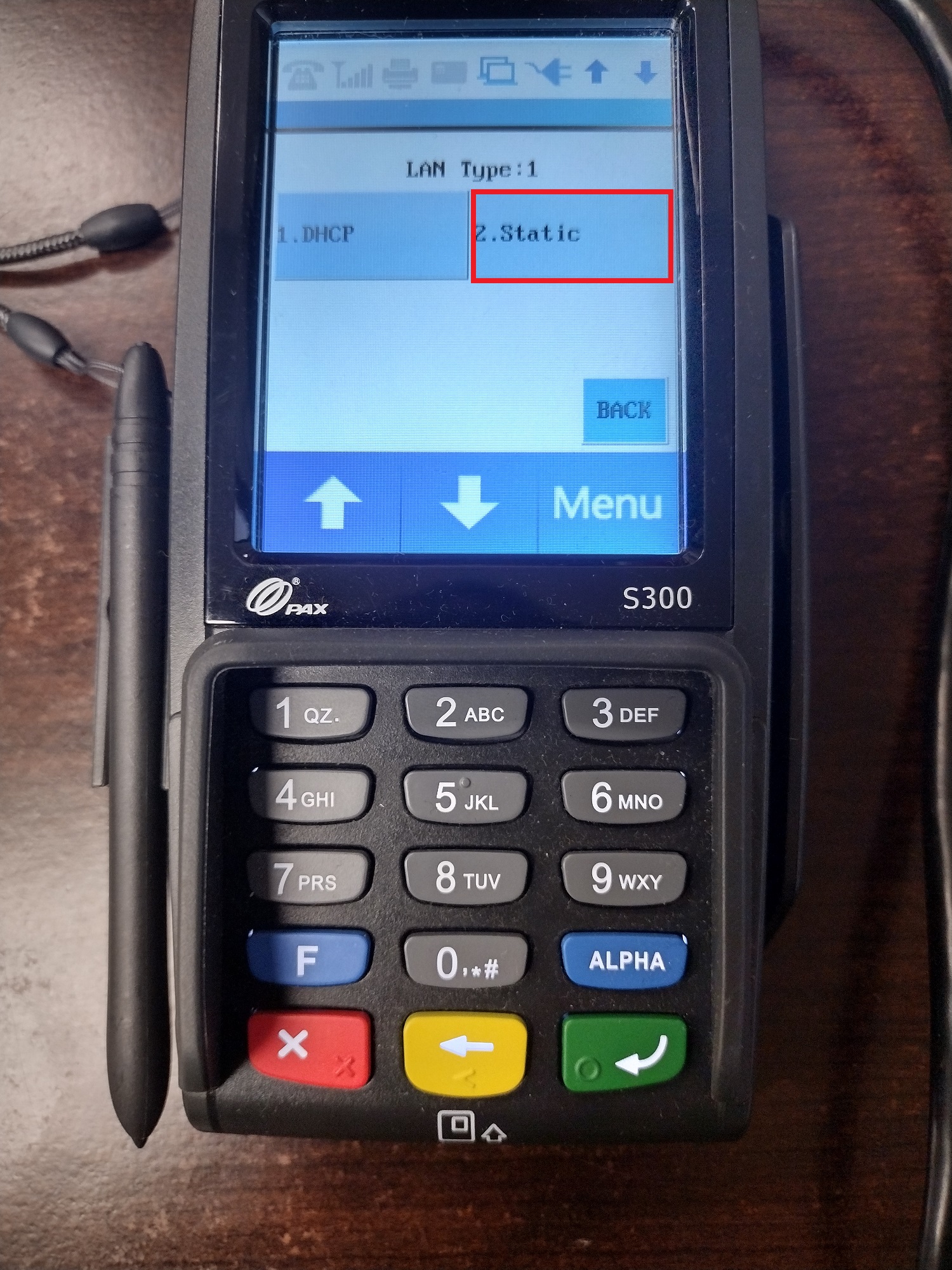

  1. Tap 2 for Static.


  1. From the LAN Parameters menu, tap 2 for IP Address.

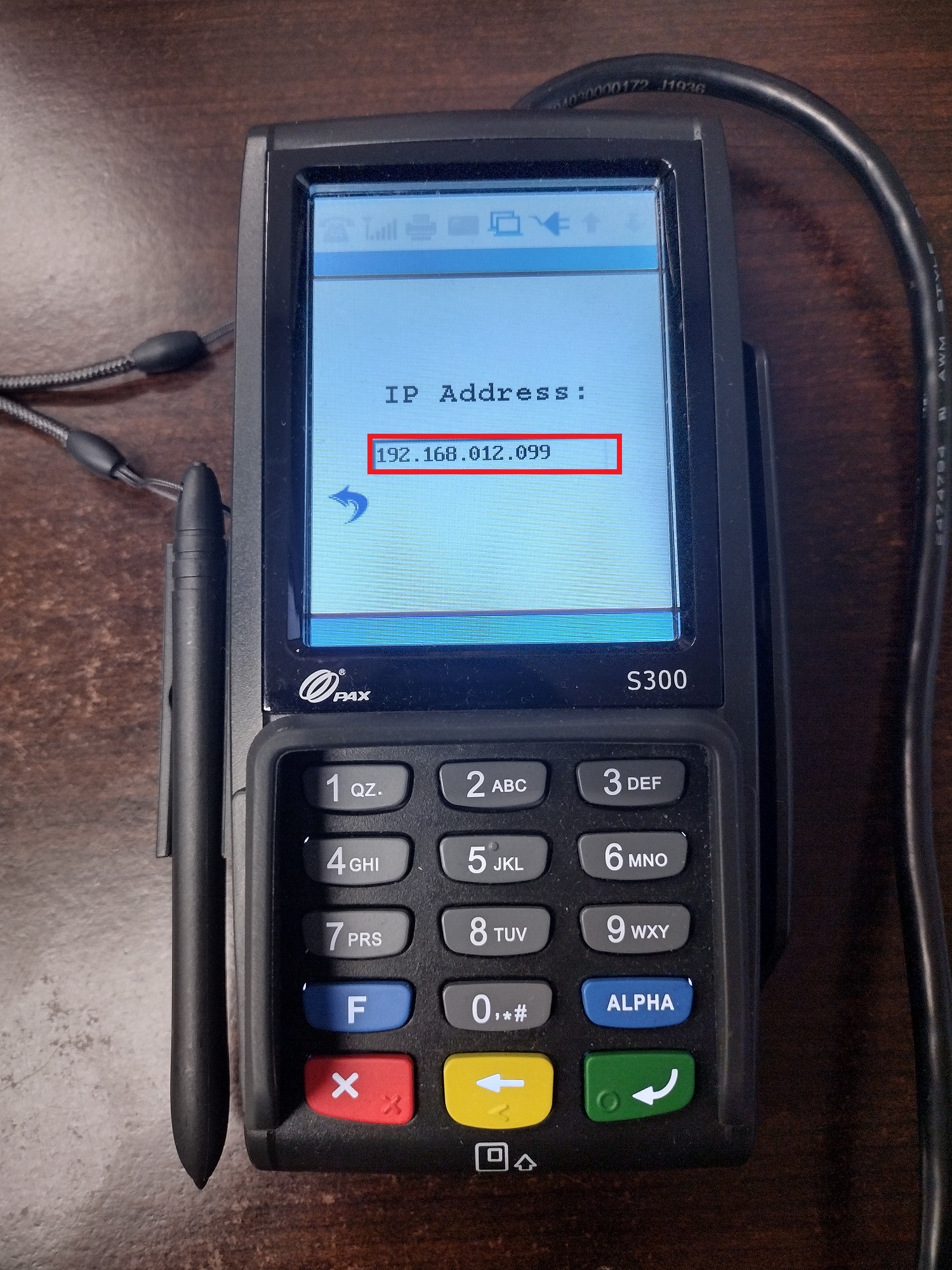

  1. Use the yellow back button to take you to the beginning of the IP address field and enter the static IP address in the format of XXX.XXX.XXX.XXX and then press the green enter button to confirm the IP address.

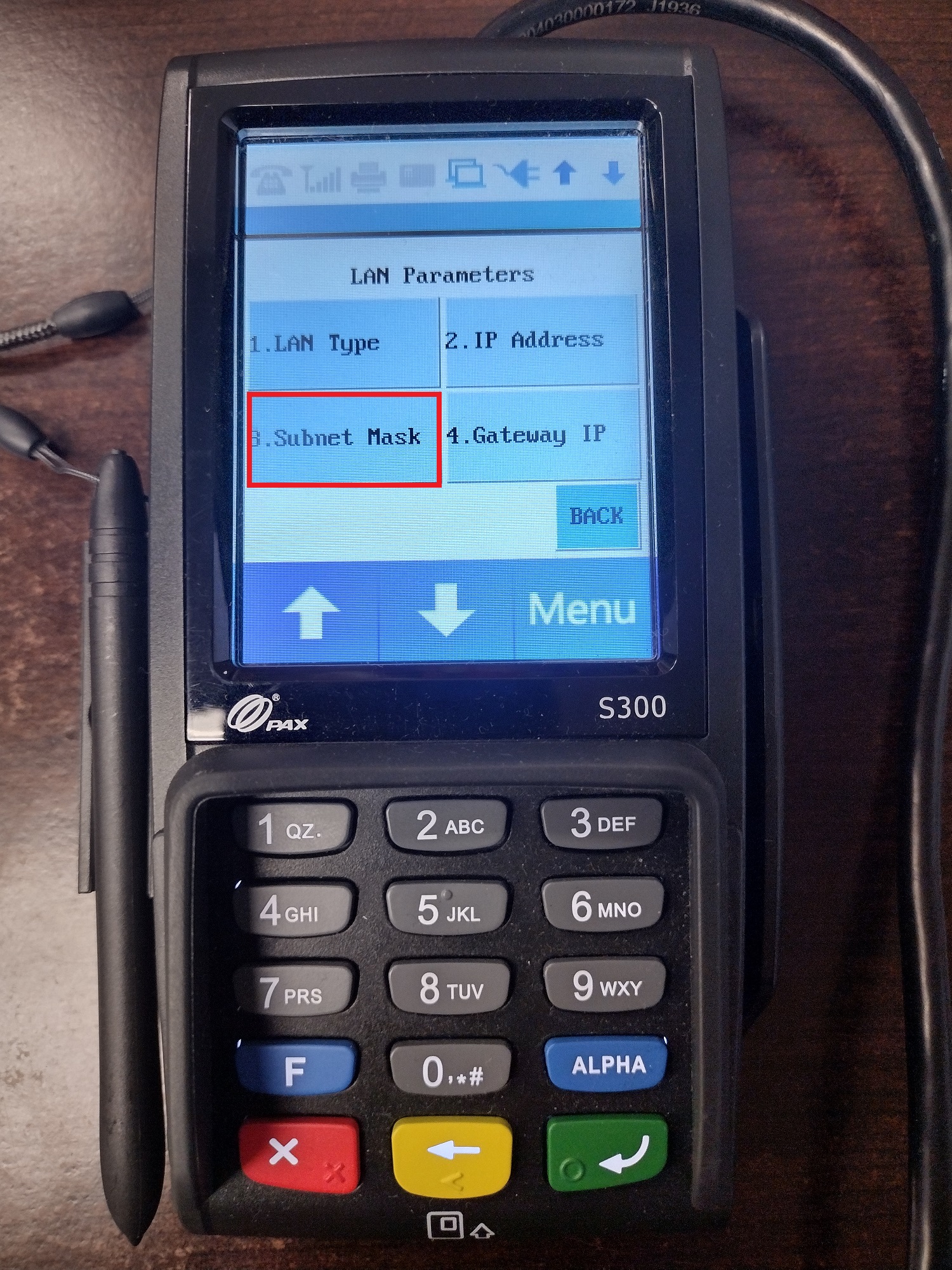

  1. From the LAN Parameters menu, tap 3 for Subnet Mask.


  1. Use the yellow back button to take you to the beginning of the Subnet Mask field and enter the Subnet Mask in the format of XXX.XXX.XXX.XXX and then press the green enter button to confirm the Subnet Mask.


  1. From the LAN Parameters menu, tap 4 for Gateway IP.

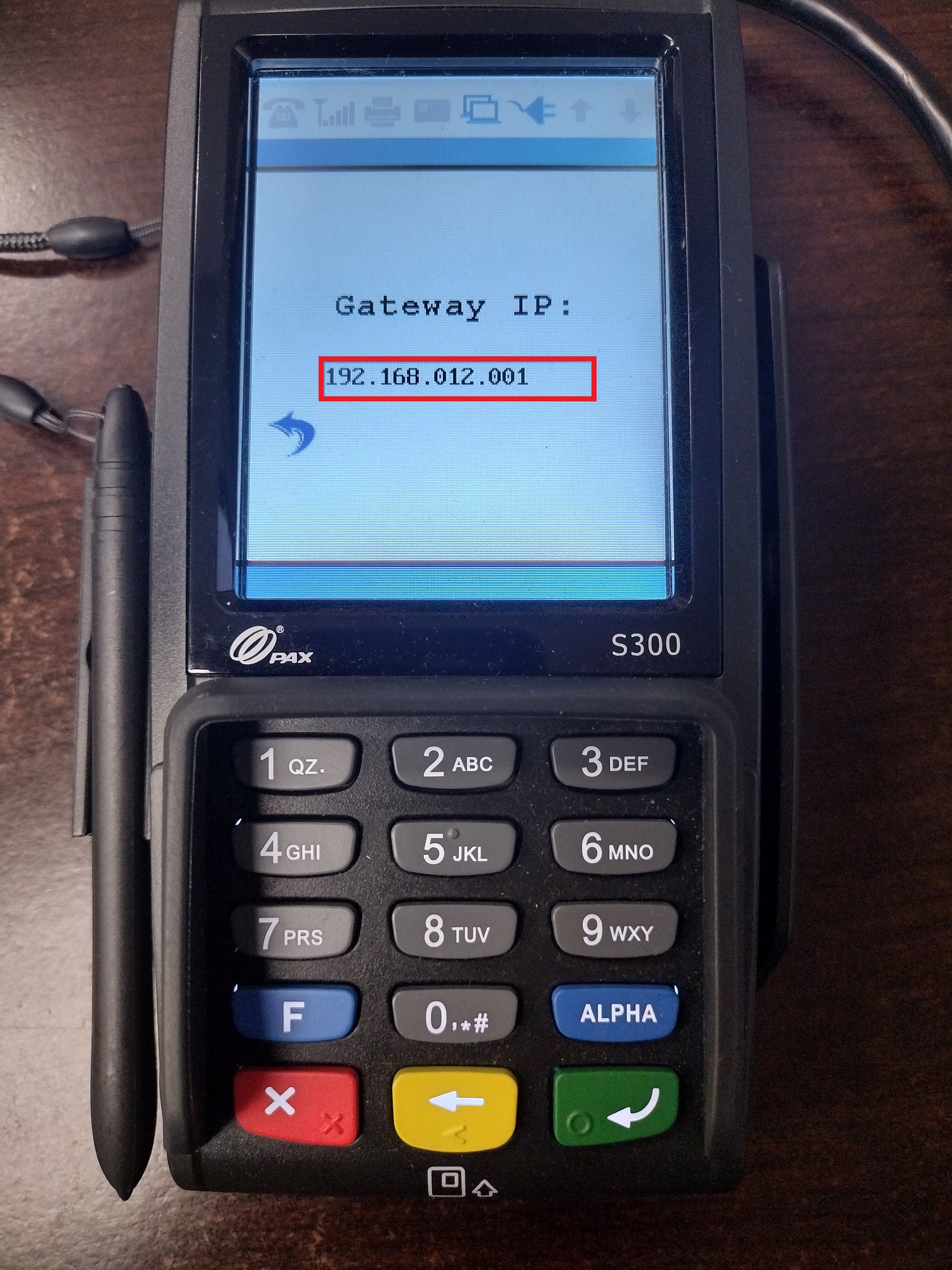

  1. Use the yellow back button to take you to the beginning of the Gateway IP field and enter the Gateway IP/Default Gateway in the format of XXX.XXX.XXX.XXX and then press the green enter button to confirm the Gateway IP/Default Gateway.


  1. From the LAN Parameters menu, tap the down arrow once.

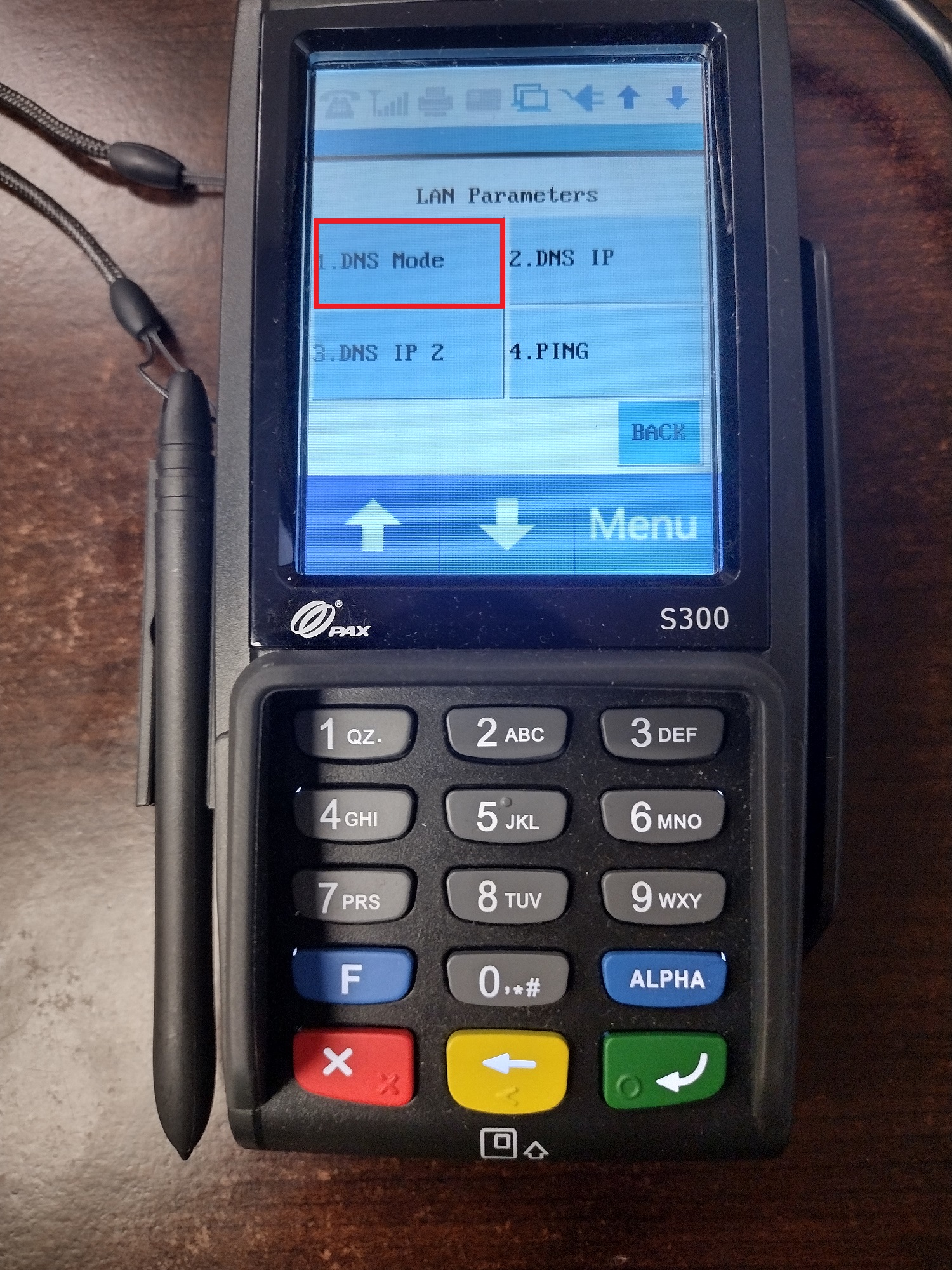

  2. Tap 1 for DNS Mode.

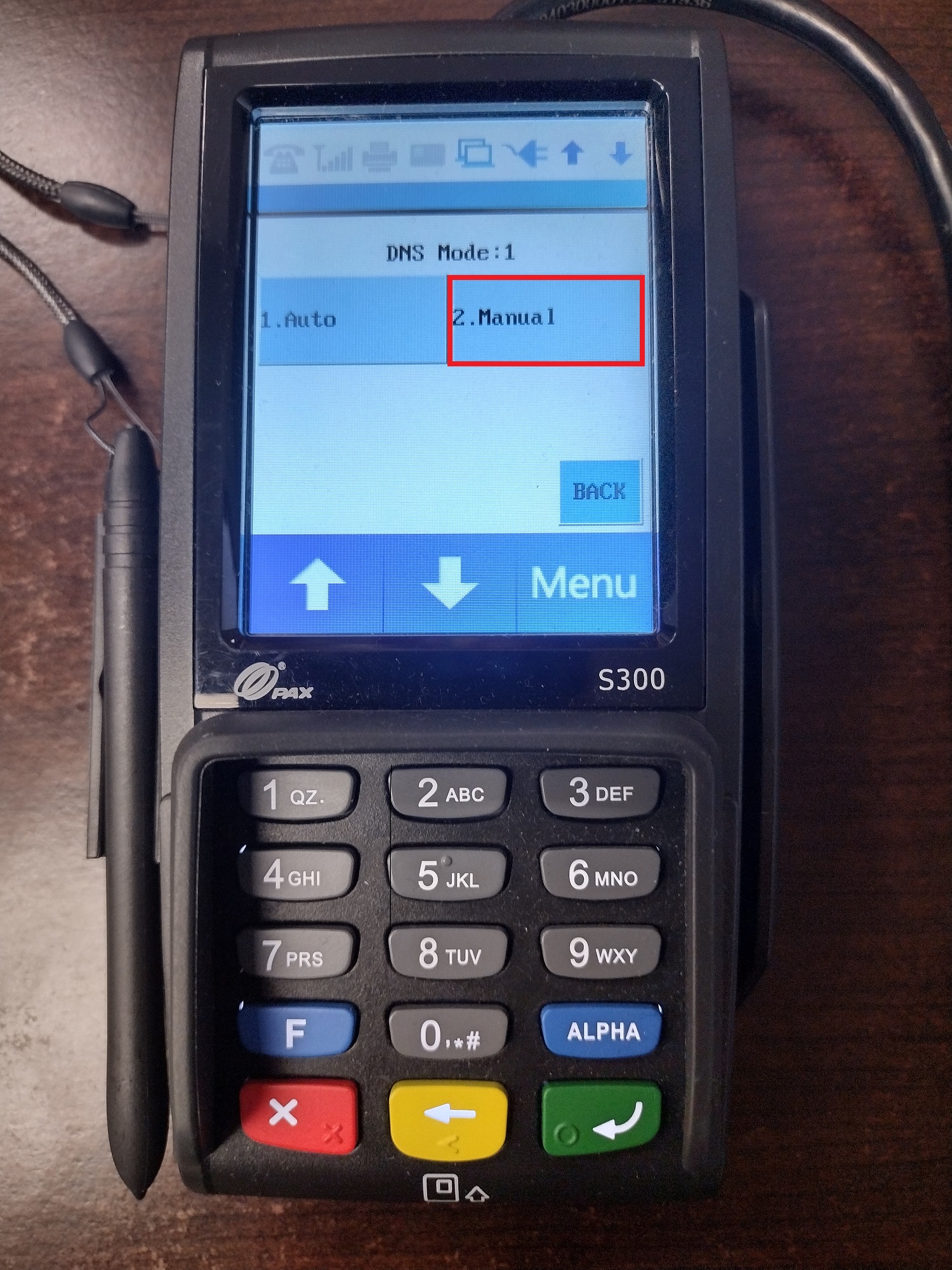

  1. From the DNS Mode:1 menu, tap 2 for Manual.


  1. From the Lan Parameters menu, tap the down arrow once.

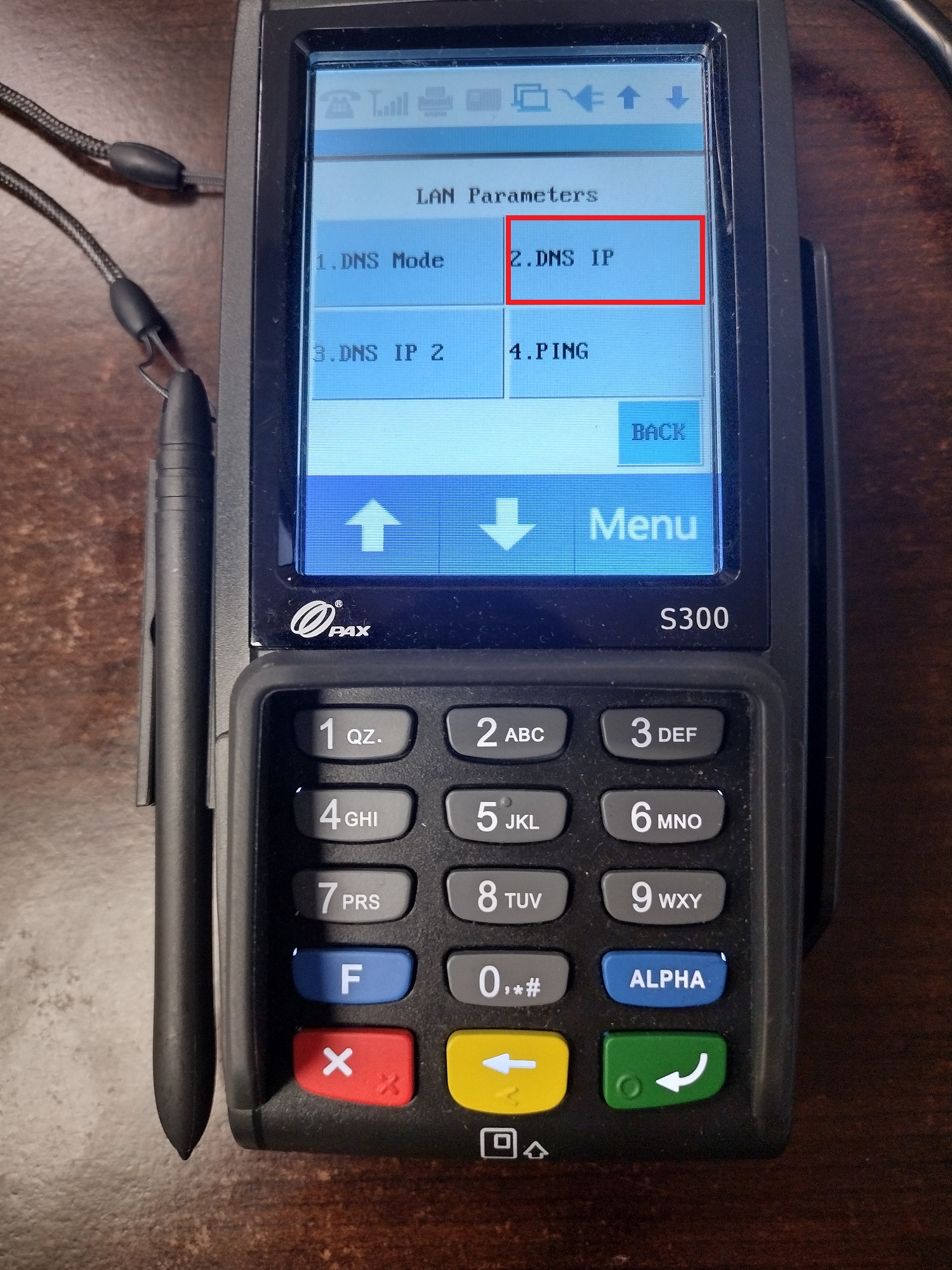

  2. Tap 2 for DNS IP.

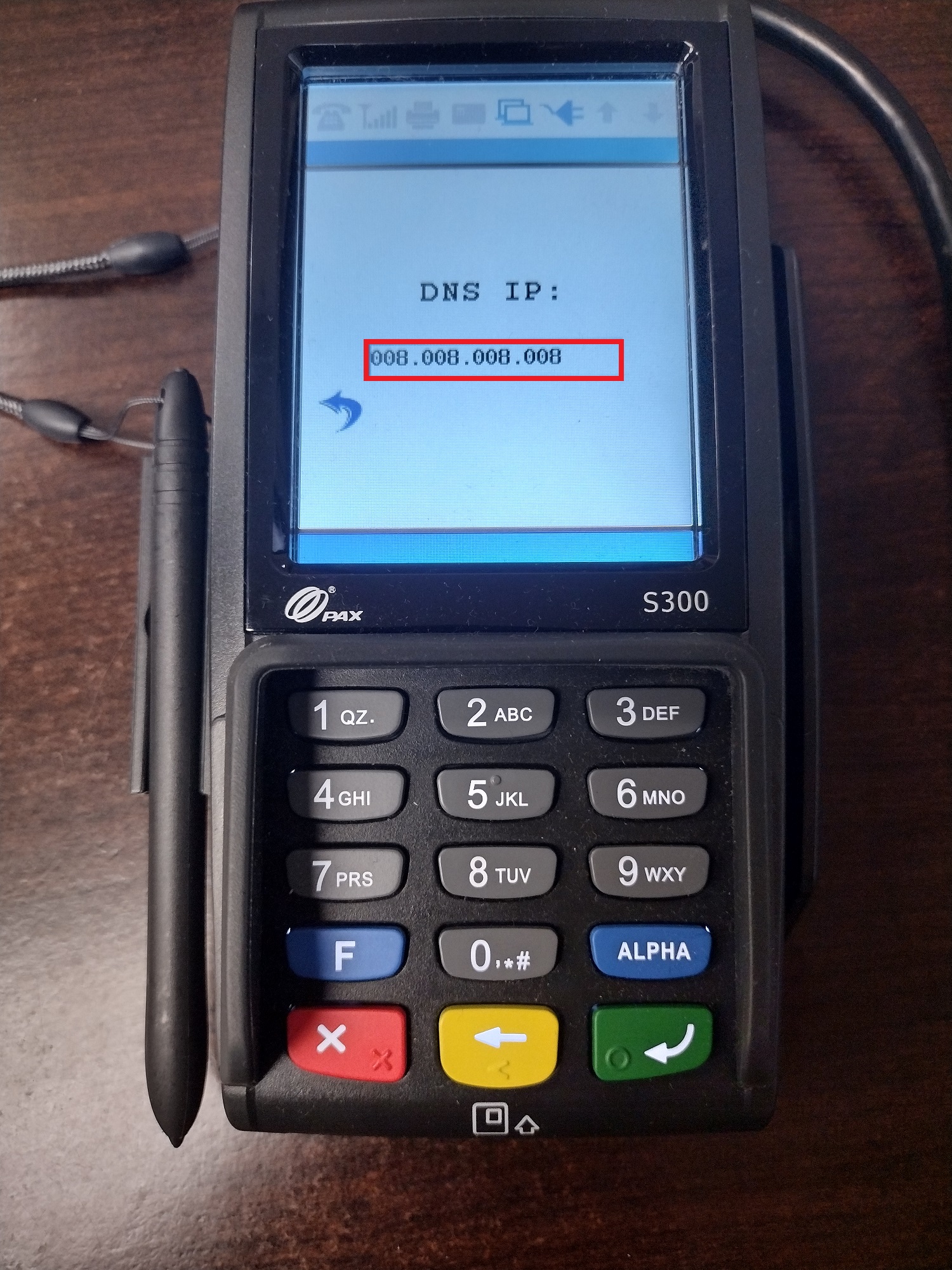

  1. Use the yellow back button to take you to the beginning of the DNS IP field and enter the DNS IP in the format of XXX.XXX.XXX.XXX and then press the green enter button to confirm the DNS IP.  The DNS IP will be "008.008.008.008".


  1. From the Lan Parameters menu, tap the down arrow once.

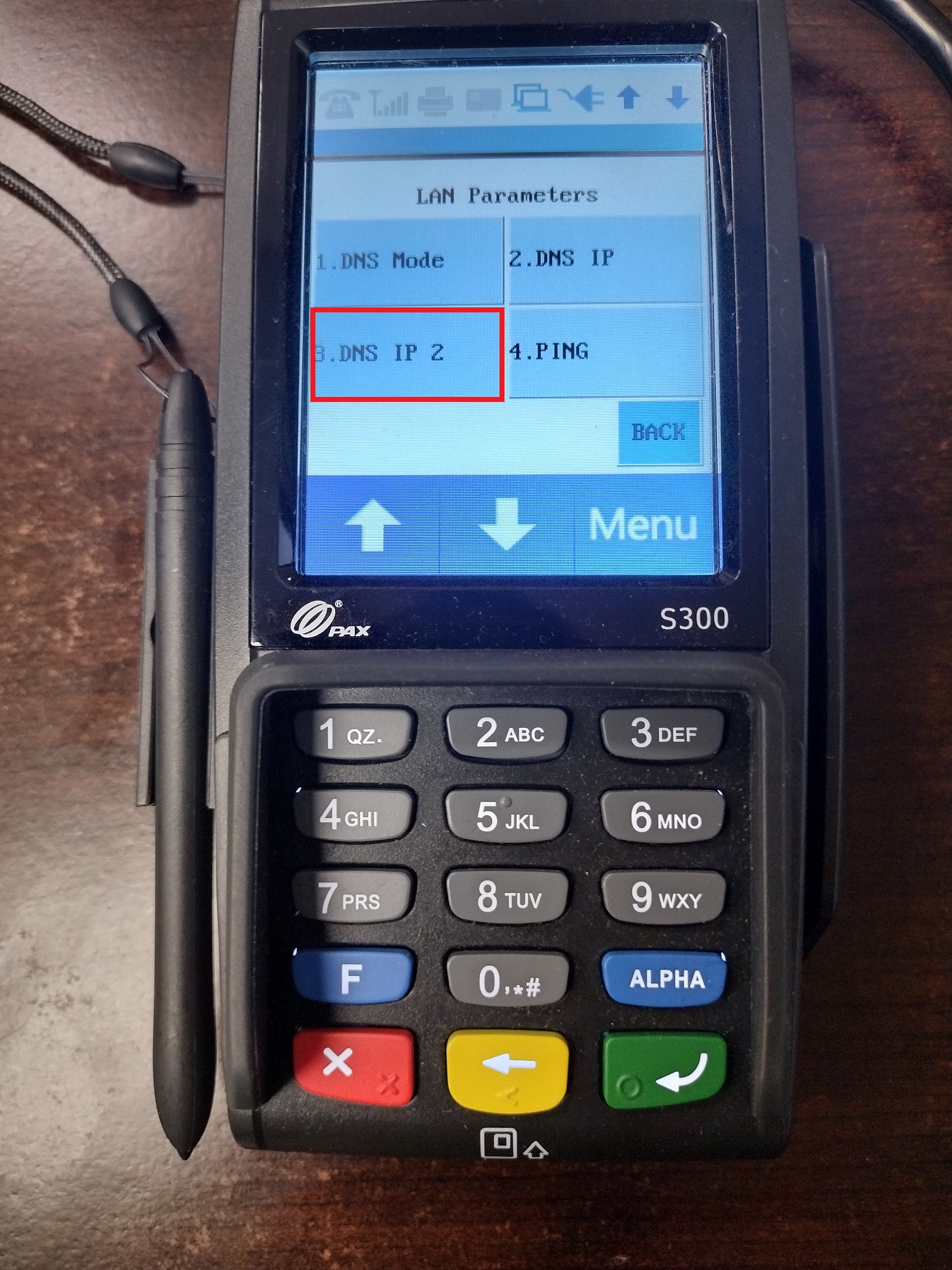

  2. Tap 3 for DNS IP 2.


  1. Use the yellow back button to take you to the beginning of the DNS IP 2 field and enter the DNS IP 2 in the format of XXX.XXX.XXX.XXX and then press the green enter button to confirm the DNS IP 2.  The DNS IP will be "008.008.004.004".


  1. From the Lan Parameters menu, tap the down arrow once.

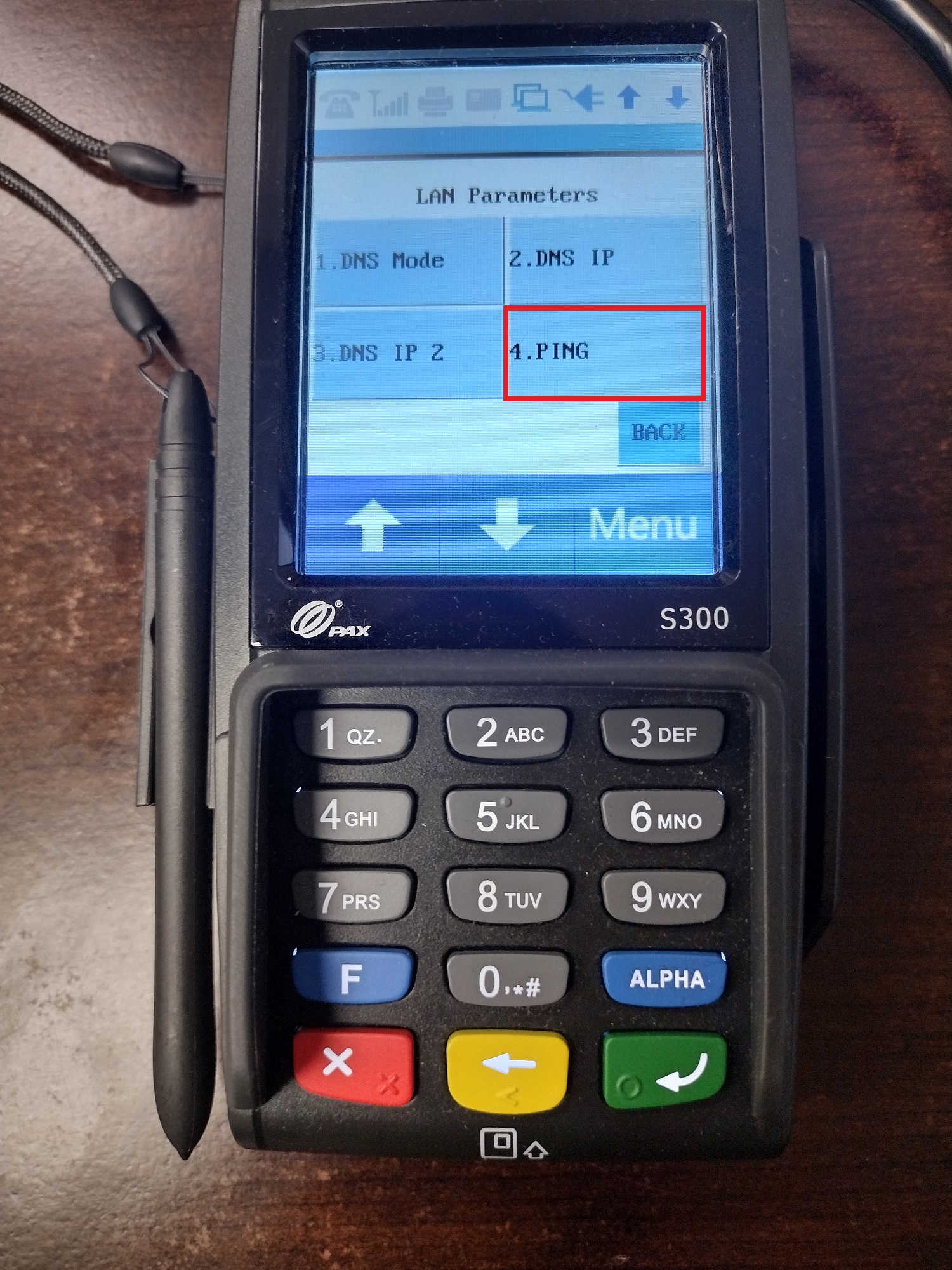

  2. Tap 4 for PING.

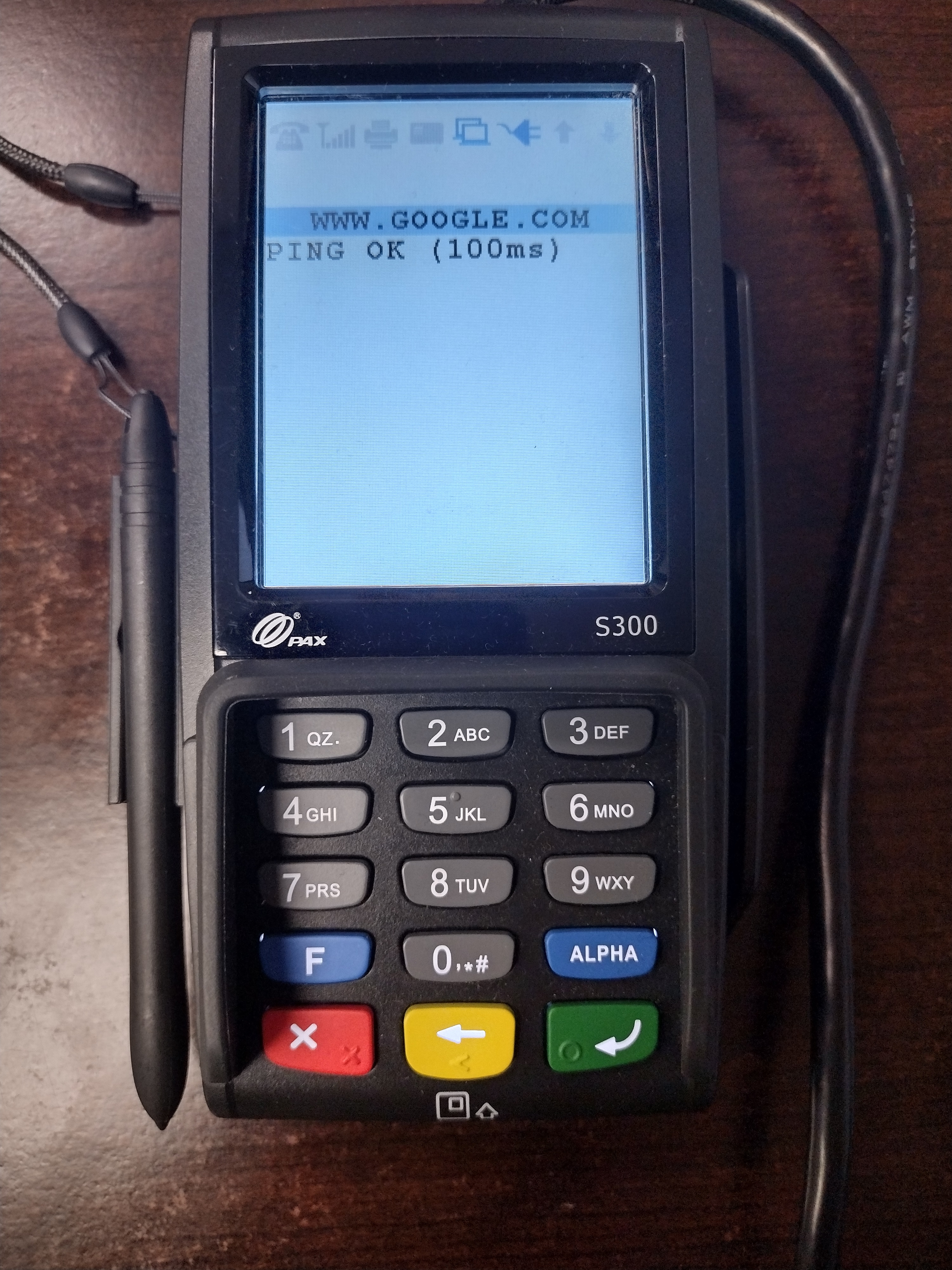

  1. Tap the green enter button to start a ping and verify that it is successful then press the red cancel button to stop the ping process.


  1. Tap the back button until you get to the idle screen for the PAX S300 pin pad terminal.
